Spring #11 : 다중 파일 업로드 (230127)

Spring 다중 파일 업로드

- 스프링의 CommonsMultipartResolver 클래스 : 여러 개의 파일을 한꺼번에 업로드 가능



CommonsMultipartResolver 클래스 속성

property	description
maxUploadSize	최대로 업로드가 가능한 파일의 크기를 설정
maxInMemorySize	디스크에 임시 파일을 생성하기 전 메모리에 보관할 수 있는 최대 바이트 크기를 설정
defaultEncodin	(UTF-8) 전달되는 매개변수의 인코딩을 설정



** 라이브러리 함수는 어노테이션으로 객체 생성 불가능.



---

다중파일업로드 실습#1

pom.xml

...
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.spring</groupId>
	<artifactId>promvn02r</artifactId>
	<name>promvn02r</name>
	<packaging>war</packaging>
	<version>1.0.0-BUILD-SNAPSHOT</version>
	<properties>
		<java-version>1.8</java-version>
		<org.springframework-version>3.1.1.RELEASE</org.springframework-version>
		<org.aspectj-version>1.6.10</org.aspectj-version>
		<org.slf4j-version>1.6.6</org.slf4j-version>
	</properties>
...
		<!-- 다중파일업로드 -->
		<dependency>
			<groupId>commons-fileupload</groupId>
			<artifactId>commons-fileupload</artifactId>
			<version>1.2.1</version>
		</dependency>
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>1.4</version>
		</dependency>
		<!-- 썸네일이미지 -->
		<dependency>
			<groupId>net.coobird</groupId>
			<artifactId>thumbnailator</artifactId>
			<version>0.4.8</version>
		</dependency>

		<!-- 이메일 -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>${org.springframework-version}</version>
		</dependency>
		<dependency>
			<groupId>javax.mail</groupId>
			<artifactId>javax.mail-api</artifactId>
			<version>1.5.4</version>
		</dependency>
		<dependency>
			<groupId>com.sun.mail</groupId>
			<artifactId>javax.mail</artifactId>
			<version>1.5.3</version>
		</dependency>
...



servelt-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans:beans xsi:schemaLocation="http://www.springframework.org/schema/mvc
	https://www.springframework.org/schema/mvc/spring-mvc.xsd
	http://www.springframework.org/schema/beans
	https://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	https://www.springframework.org/schema/context/spring-context.xsd"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:beans="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns="http://www.springframework.org/schema/mvc" >

	<!-- DispatcherServlet Context: defines this servlet's request-processing infrastructure -->

	<!-- Enables the Spring MVC @Controller programming model -->
	<annotation-driven />

	<!-- Handles HTTP GET requests for /resources/** by efficiently serving up static resources in the ${webappRoot}/resources directory -->
	<resources mapping="/resources/**" location="/resources/" />

	<!-- Resolves views selected for rendering by @Controllers to .jsp resources in the /WEB-INF/views directory -->
	<beans:bean class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<beans:property name="prefix" value="/WEB-INF/views/" />
		<beans:property name="suffix" value=".jsp" />
	</beans:bean>

	<context:component-scan base-package="com.spring.promvn02r" />

	<!--멀티파트리졸버-->
	<beans:bean id="multipartResolver"
	class="org.springframework.web.multipart.commons.CommonsMultipartResolver">
		<beans:property name="maxUploadSize" value="52428800" />
		<beans:property name="maxInMemorySize" value="1000000" />
		<beans:property name="defaultEncoding" value="utf-8" />
	</beans:bean>

</beans:beans>



com.spring.promvn02r.ex01 패키지

FileUploadController.java

package com.spring.promvn02r.ex01;

import java.io.File;
import java.util.ArrayList;
import java.util.Enumeration;
import java.util.HashMap;
import java.util.Iterator;
import java.util.List;
import java.util.Map;

import javax.servlet.http.HttpServletResponse;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.multipart.MultipartFile;
import org.springframework.web.multipart.MultipartHttpServletRequest;
import org.springframework.web.servlet.ModelAndView;

@Controller
public class FileUploadController {
	private static final String CURR_IMAGE_REPO_PATH = "c:\\spring\\image_repo";

	@RequestMapping(value="/form")
	public String form() {
		return "uploadForm";
	}

	@RequestMapping(value="/upload", method=RequestMethod.POST)
	public ModelAndView upload(MultipartHttpServletRequest multipartRequest, HttpServletResponse response) throws Exception {
		multipartRequest.setCharacterEncoding("utf-8");
		Map map = new HashMap();
		Enumeration enu = multipartRequest.getParameterNames();
		while(enu.hasMoreElements()) {
			String name = (String) enu.nextElement();
			String value = multipartRequest.getParameter(name);
			System.out.println(name + ", " + value);
			map.put(name, value);
		}

		List fileList = fileProcess(multipartRequest);
		map.put("fileList", fileList);
		ModelAndView mav = new ModelAndView();
		mav.addObject("map", map);
		mav.setViewName("result");
		return mav;
	}

	private List<String> fileProcess(MultipartHttpServletRequest multipartRequest) throws Exception {
		List<String> fileList = new ArrayList<String>();
		Iterator<String> fileNames = multipartRequest.getFileNames();
		while(fileNames.hasNext()) {
			String fileName = fileNames.next();
			System.out.println("fileName : " + fileName);
			MultipartFile mFile = multipartRequest.getFile(fileName);
			System.out.println("mfile : " + mFile);
			String originalFileName = mFile.getOriginalFilename();
			System.out.println("originalFileName : " + originalFileName);
			fileList.add(originalFileName);
			File file = new File(CURR_IMAGE_REPO_PATH + "\\" + fileName);
			if(mFile.getSize()!=0) { // File Null Check
				if(!file.exists()) {
					if(file.getParentFile().mkdirs()) {
						file.createNewFile();
					}
				}
				mFile.transferTo(new File(CURR_IMAGE_REPO_PATH + "\\" + originalFileName));
			}
		}
		return fileList;
	}
}



com.spring.promvn02r.ex01 패키지

FileDownloadController.java

package com.spring.promvn02r.ex01;

import java.io.File;
import java.io.FileInputStream;
import java.io.OutputStream;

import javax.servlet.http.HttpServletResponse;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

@Controller
public class FileDownloadController {
	private static String CURR_IMAGE_REPO_PATH = "c:\\spring\\image_repo";

	@RequestMapping("/download")
	public void download(@RequestParam("imageFileName") String imageFileName, HttpServletResponse response) throws Exception {
		OutputStream out = response.getOutputStream();
		String downFile = CURR_IMAGE_REPO_PATH + "\\" + imageFileName;
		File file = new File(downFile);

		response.setHeader("Cache-Control",  "no-cache");
		response.addHeader("Content-disposition",  "attachment: fileName=" + imageFileName);

		FileInputStream in = new FileInputStream(file);
		byte[] buffer = new byte[1024 * 8];
		while(true) {
			int count = in.read(buffer);
			System.out.println(count);
			if(count == -1) break;
			out.write(buffer, 0, count);
		}
		in.close();
		out.close();
	}
}



webapp-WEB-INF-views

result.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" isELIgnored="false" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<% request.setCharacterEncoding("UTF-8"); %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>결과창</title>
</head>
<body>
	<h1>업로드가 완료되었습니다.</h1>
		<label>아이디 : </label>
		<input type="text" name="id" value="${map.id}" readonly><br>
		<label>이름 : </label>
		<input type="text" name="name" value="${map.name}" readonly><br>
		<div class="result-images">
			<c:forEach var="imageFileName" items="${map.fileList}" >
				<%-- <img src="${pageContext.request.contextPath}/donwload?imageFileName=${imageFileName}" style="width:150px"> --%>
				<img src="${pageContext.request.contextPath}/download?imageFileName=${imageFileName}">
				<br><br><br>
			</c:forEach>
		</div>
		<p><a href='${pageContext.request.contextPath}/form'>다시 업로드 하기</a></p>
</body>
</html>



uploadForm.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8" pageEncoding="UTF-8" isELIgnored="false" %>
<%@ taglib prefix="c" uri="http://java.sun.com/jsp/jstl/core" %>
<c:set var="contextPath" value="${pageContext.request.contextPath}" />
<% request.setCharacterEncoding("UTF-8"); %>
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>파일 업로드 하기</title>
<script src="http://code.jquery.com/jquery-latest.js"></script>
<script>
var cnt=1;
function fn_addFile() {
	$("#d_file").append("<br>"+"<input type='file' name='file"+cnt+"' />");
	cnt++;
}
</script>
</head>
<body>
	<h1>파일 업로드 하기</h1>
	<form method="post" action="${contextPath}/upload" enctype="multipart/form-data">
		<label>아이디 : </label>
			<input type="text" name="id"><br>
		<label>이름 : </label>
			<input type="text" name="name"><br>
		<input type="button" value="파일추가" onClick="fn_addFile()" /><br>
		<div id="d_file">
		</div>
		<input type="submit" value="업로드" />
	</form>
</body>
</html>

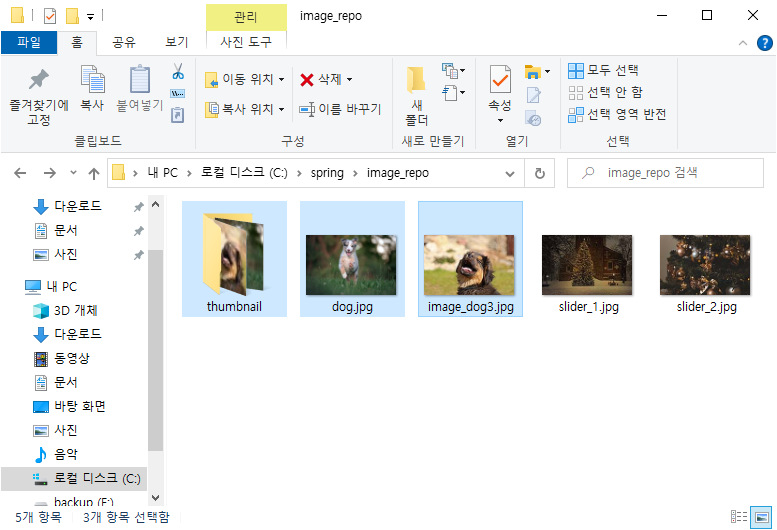

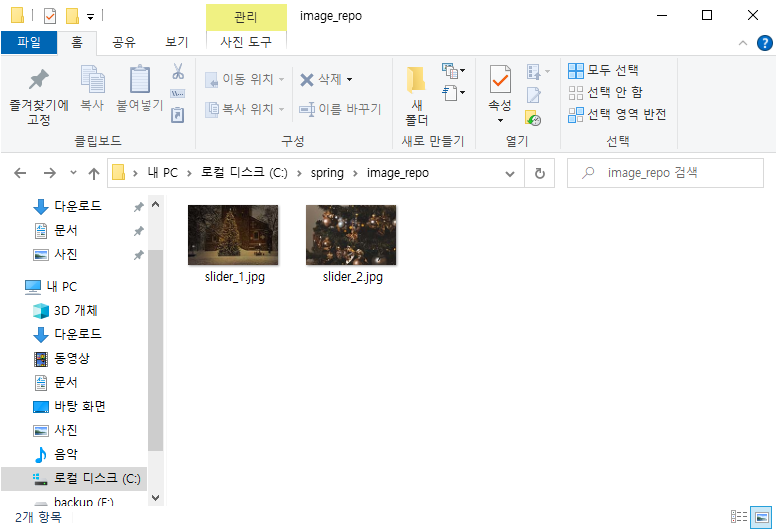

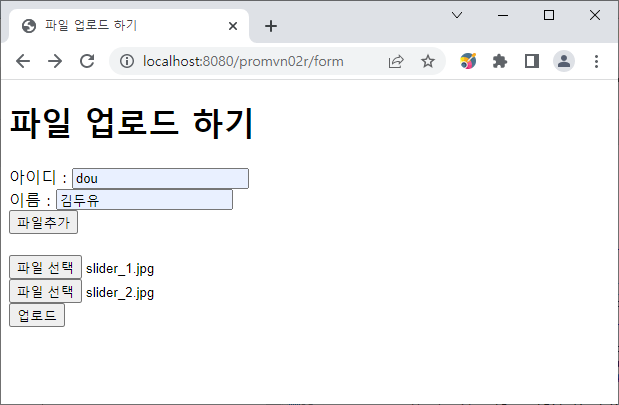

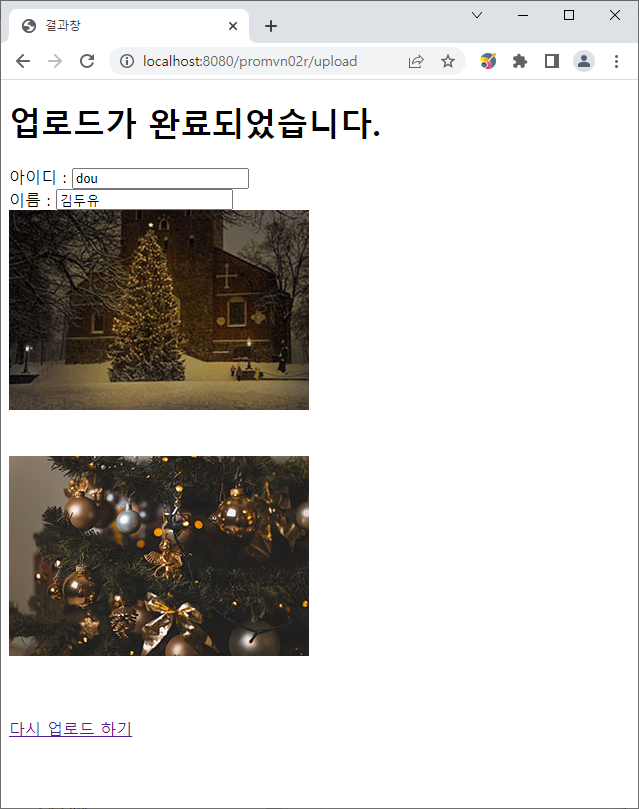

-- 결과 --



---

다중파일업로드 (썸네일)실습#2

com.spring.promvn02r.ex01 패키지의 FileDownloadController.java에서 @Controller 주석처리 후,

com.spring.promvn02r.ex02 패키지 생성

FileDownloadController.java

package com.spring.promvn02r.ex02;

import java.io.File;
import java.io.FileInputStream;
import java.io.OutputStream;

import javax.servlet.http.HttpServletResponse;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;

import net.coobird.thumbnailator.Thumbnails;

@Controller()
public class FileDownloadController {
	private static String CURR_IMAGE_REPO_PATH = "c:\\spring\\image_repo";

	@RequestMapping("/download")
	protected void download(@RequestParam("imageFileName") String imageFileName, HttpServletResponse response) throws Exception {
		OutputStream out = response.getOutputStream();
		String filePath = CURR_IMAGE_REPO_PATH + "\\" + imageFileName;
		File image = new File(filePath);
		int lastIndex = imageFileName.lastIndexOf(".");
		String fileName = imageFileName.substring(0, lastIndex);
		File thumbnail = new File(CURR_IMAGE_REPO_PATH + "\\" +"thumbnail" + "\\" + fileName + ".png");
		if(image.exists()) {
			thumbnail.getParentFile().mkdirs();
			Thumbnails.of(image).size(50,50).outputFormat("png").toFile(thumbnail);
		}

		FileInputStream in = new FileInputStream(thumbnail);
		byte[] buffer = new byte[1024 * 8];
		while(true) {
			int count = in.read(buffer);
			if(count == -1) break;
			out.write(buffer, 0, count);
		}
		in.close();
		out.close();
	}

}

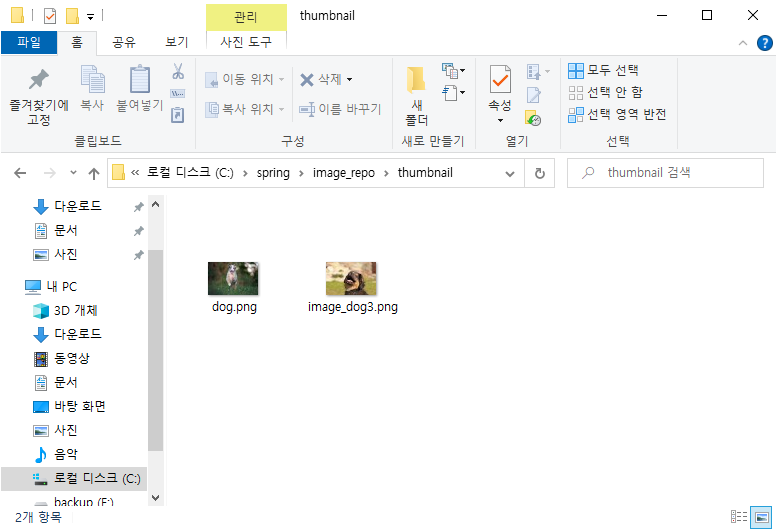

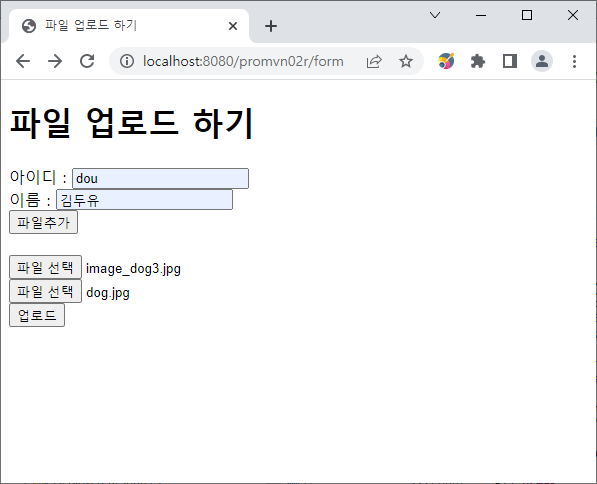

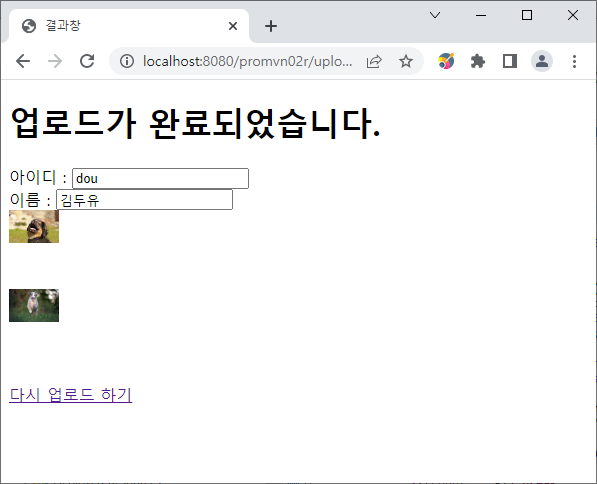

-- 결과 --
